Smart home electrical wiring connects lighting control, security systems, and smart home devices across your property. Grounded Electric offers smart home installation in Bergen County to create reliable and safe systems.
A proper setup separates power and data lines to protect devices and improve performance.
This guide explains how home automation electrical wiring supports smart home technology, energy savings, and long-term reliability.
Grounded Electric is led by Barret Abramow and licensed electrician Robert “Bobby” Mulholland. Their team designs systems that meet code, enhance efficiency, and prepare homes for future upgrades.
Key Takeaways
- Smart home wiring connects lighting, security, and devices safely and efficiently.
- Prewiring during construction simplifies future upgrades.
- Separating power and communication lines prevents interference.
- Licensed electricians at Grounded Electric manage all panels and circuits.
- Extra conduits and scalable panels make it easier to expand your system.
What Is Wired Home Automation?
Wired home automation connects devices with cables instead of depending only on wireless signals. It gives stronger, more stable performance and secure communication. This setup supports lighting, climate control, and security systems while reducing wi fi problems.
How a Smart Home System Works
A smart home system uses a controller that sends signals to devices through low-voltage wiring or network cables. Commands from switches or apps reach devices instantly for smooth operation of lights, heating, and locks.
How Smart Home Devices Connect
Smart home devices use voltage wiring, Ethernet, and wireless access points. Devices such as smart thermostats, security cameras, and intelligent lighting systems require both power and data. Wired connections give faster response times and better reliability. They also work well with the best home automation devices.
What Wiring Is Required for a Smart Home?
Smart home electrical wiring needs clear paths for power and data. High-voltage lines supply outlets and lighting, while low-voltage cables carry data signals. Keeping them apart prevents signal loss and protects sensitive devices.
Power vs Low-Voltage Wiring
Power wiring delivers electricity, while low-voltage wiring carries control signals for connected devices. These must stay separate to meet safety codes and ensure smooth operation.
Data, Lighting, and Control Lines
Data lines link routers and control panels. Lighting and control lines connect dimmers and lighting modules for home lighting automation. Each wire type supports a different function within home automation systems.
Smart Home Prewire and Planning
Prewiring occurs before walls are closed during construction or renovation. It lays out structured cabling for both current and future smart devices. Barret Abramow plans each layout to make future upgrades simple.
When to Prewire a Home
Prewire during framing or before drywall goes up. It makes wiring for lighting, data, and security systems easier. Early planning avoids costly changes later.
Central Panel and Conduit Layout
A central hub connects automation systems to the main electrical panel. Conduits protect cables and leave space for future wiring. Grounded Electric keeps layouts organized and easy to service.
Conduit Routing and Pull Path Planning
Conduits direct cables through walls and ceilings. Pulling strings makes it easy to add wires later. Early conduit planning keeps your home ready for new devices.

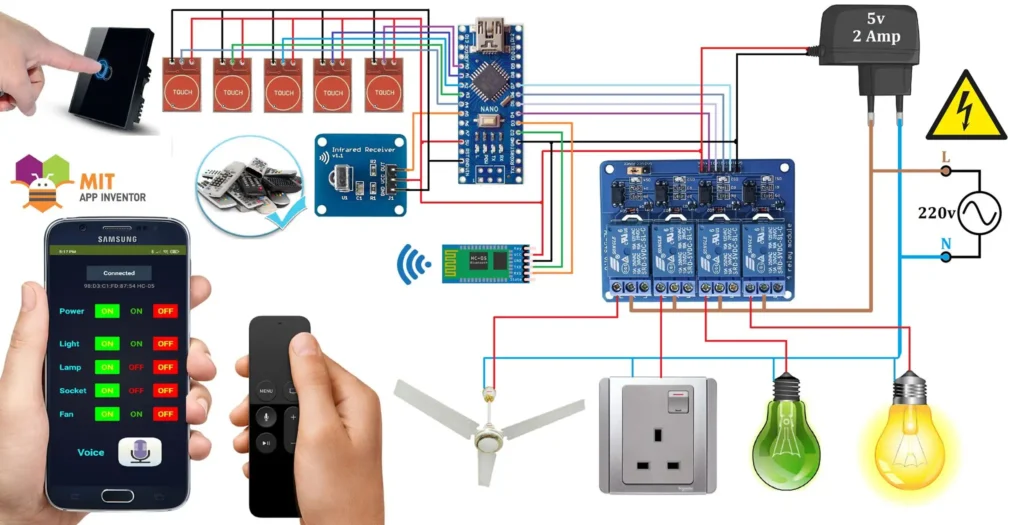

Home Automation Wiring Diagrams
Home automation wiring diagrams show how power and data move through your home. These diagrams help electricians install systems correctly and make maintenance easier.
Home Automation Wiring Diagram Overview
A diagram lists all wires, circuits, and connections. It also shows where high- and low-voltage lines must stay separate. Clear labeling prevents mistakes during installation.
Home Automation System Wiring Diagram Use
Installers follow wiring diagrams to confirm connections for smart thermostats, lighting, and security systems. Good documentation helps with repairs and upgrades.

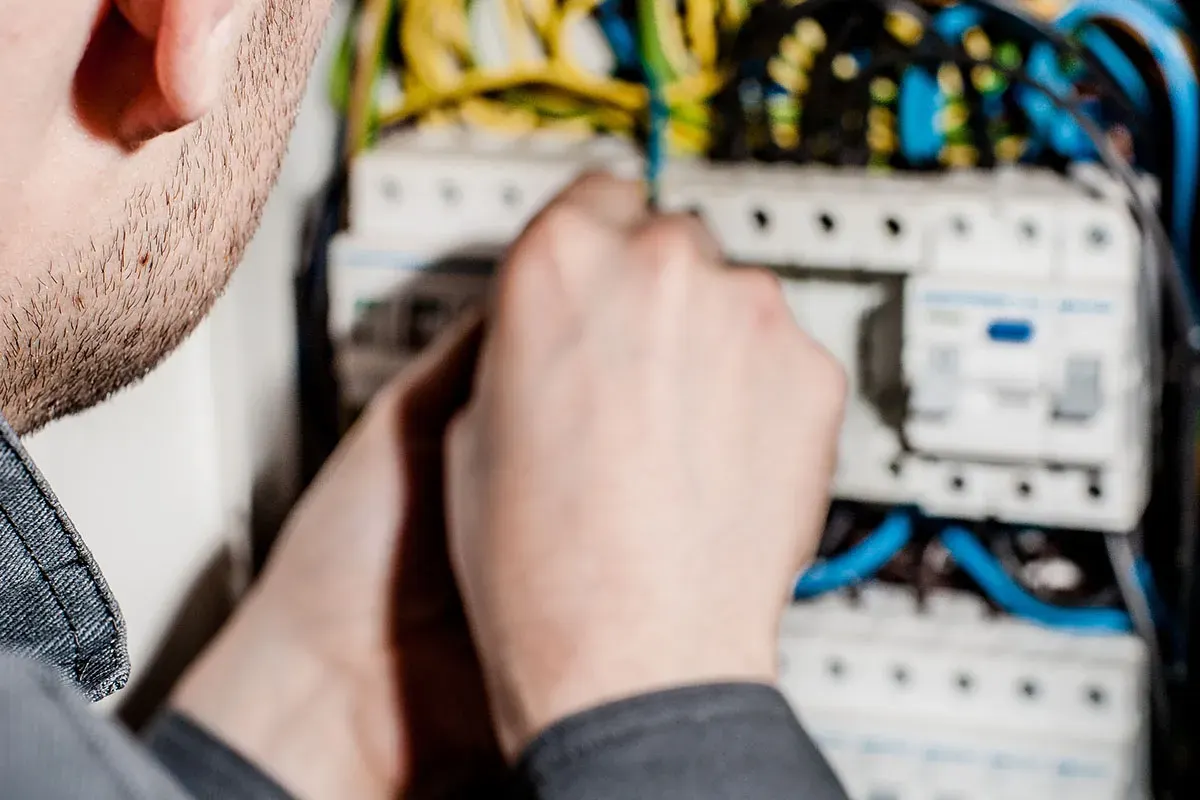

Smart Home Electrical Installation
Smart home electrical installation brings your wiring plan to life. Grounded Electric complies with all safety codes, and Bobby Mulholland ensures that every circuit meets voltage and load standards.
Circuit Separation and Grounding
Each innovative system uses dedicated circuits and grounding to protect against surges. This setup keeps data and power stable.
Code and Safety Standards
Installations follow NEC and local codes. Electrical panels must handle the home’s load, and most smart devices require neutral wires. Grounded Electric ensures full compliance before activation.
Wiring a Smart Home in New vs Existing Homes
New construction allows easy wiring access, while older homes may require creative routing. Both can support full automation with professional planning.
New Construction Wiring
Open framing makes it simple to run both power and low-voltage wiring. It also allows better placement of lighting control and security systems for future upgrades.
Finished-Home Retrofit Options
Older homes may need panel updates or new neutral wires. Grounded Electric plans retrofits carefully to reduce wall damage and maintain code compliance.
Smart Home Wiring Cost
Smart home wiring cost depends on the home’s size, number of circuits, and system type. Home automation and wiring cost also includes labor, permits, and equipment.
| Home / Project Type | Estimated Cost Range |
|---|---|
| Small home / basic smart setup (wiring + a few smart devices) | $3,000 – $5,000 |
| Mid-size home (standard wiring + data + multiple smart devices) | $6,000 – $15,000 |
| Larger home or full smart-home wiring with multiple circuits, devices, and upgrades | $15,000 – $30,000+, depending on scope and device count |
Smart Home Wiring Cost Factors
Main cost drivers include wiring length, lighting circuits, and the number of devices. Security and energy systems can raise costs. Planning early helps control spending.
Best Home Automation and Wiring Practices
Good wiring design improves safety and performance. Labeled panels and clean routing make maintenance simple.
Performance and Reliability Standards
Use shielded cables and proper grounding to keep systems stable. Good wi fi and wired connections improve network coverage for connected devices. Regular updates keep software secure.
Common Wiring Mistakes to Avoid
Frequent mistakes include skipping neutral wires or overloading circuits. Licensed electricians avoid these problems with correct design. Homeowners should leave electrical panel work to professionals for safety.
Future-Proofing Smart Home Wiring
Future-proofing keeps your wiring ready for new devices. Planning for extra conduits and space in the panel avoids expensive remodeling later.
Spare Conduits and Extra Runs
Empty conduits and spare wiring runs make upgrades simple. Grounded Electric includes these in every prewire plan for flexibility.
Capacity for New Smart Home Devices
Panels should have space for new breakers, and data networks must support added traffic. Early planning ensures long-term stability and easy expansion.
Professional Smart Home Wiring Systems
Professional wiring ensures your system meets safety and code standards. Barret Abramow leads each project, while Bobby Mulholland checks all wiring for accuracy and compliance.
Licensed Installation Benefits
Licensed installation protects property value and ensures safety. Inspections confirm that all wiring meets electrical code.
Inspectors verify installations before activation. Grounded Electric handles permits, inspections, and any corrections. Final approval confirms safe voltage wiring and proper grounding.
Service, Upgrades, and Compliance
Regular service extends system life and keeps devices compatible. Grounded Electric provides maintenance, upgrades, and full documentation for every client.
Plan Your Smart Home Project with Us
Ready to plan your smart home wiring project? The experts at Grounded Electric can help you design, install, and maintain a safe, reliable system tailored to your home.
Schedule a consultation with Grounded Electric today to discuss your smart home goals and get a detailed quote from our licensed professionals.
